The base class for all geometries. More...

#include <t8_geometry_base.hxx>

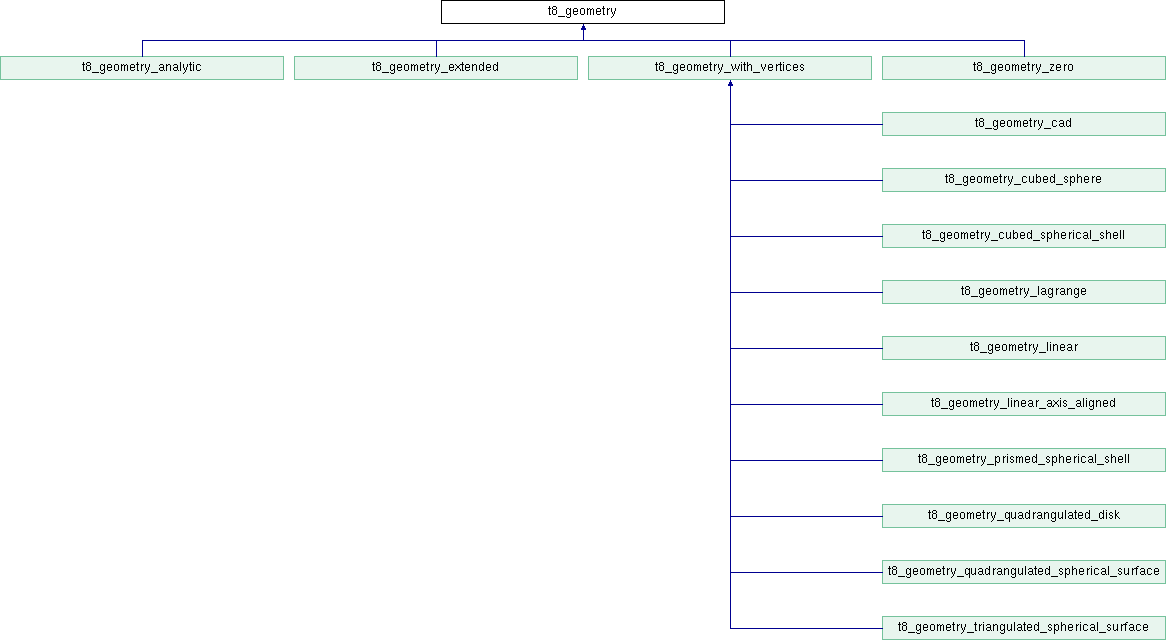

Inheritance diagram for t8_geometry:

Public Member Functions
	t8_geometry (int dim, std::string name)

virtual	~t8_geometry ()
	The destructor. More...

virtual void	t8_geom_evaluate (t8_cmesh_t cmesh, t8_gloidx_t gtreeid, const double ref_coords, const size_t num_coords, double out_coords) const =0
	Maps points in the reference space $ [0,1]^\mathrm{dim} \to \mathbb{R}^3 $. More...

virtual void	t8_geom_evaluate_jacobian (t8_cmesh_t cmesh, t8_gloidx_t gtreeid, const double ref_coords, const size_t num_coords, double jacobian) const =0
	Compute the jacobian of the t8_geom_evaluate map at a point in the reference space $ [0,1]^\mathrm{dim} $. More...

virtual void	t8_geom_load_tree_data (t8_cmesh_t cmesh, t8_gloidx_t gtreeid)=0
	Update a possible internal data buffer for per tree data. More...

virtual void	t8_geom_point_batch_inside_element (t8_forest_t forest, t8_locidx_t ltreeid, const t8_element_t element, const double points, const int num_points, int *is_inside, const double tolerance) const
	Query whether a batch of points lies inside an element. More...

virtual bool	t8_geom_tree_negative_volume () const
	Check if the currently active tree has a negative volume. More...

int	t8_geom_get_dimension () const
	Get the dimension of this geometry. More...

const std::string	t8_geom_get_name () const
	Get the name of this geometry. More...

const size_t	t8_geom_get_hash () const

virtual t8_geometry_type_t	t8_geom_get_type () const =0
	Get the type of this geometry. More...

Protected Attributes
int	dimension
	The dimension of reference space for which this is a geometry.

std::string	name
	The name of this geometry.

size_t	hash
	The hash of the name of this geometry.

Detailed Description

The base class for all geometries.

This class provides a general template for all geometries. It is a pure virtual class and has to be inherited by a concrete geometry implementation.

Constructor & Destructor Documentation

◆ ~t8_geometry()

virtual t8_geometry::~t8_geometry ( )

inlinevirtual

The destructor.

It does nothing but has to be defined since we may want to delete geometry that is actually inherited and providing an implementation for the destructor ensures that the destructor of the child class will be executed.

Member Function Documentation

◆ t8_geom_evaluate()

virtual void t8_geometry::t8_geom_evaluate	(	t8_cmesh_t	cmesh,
		t8_gloidx_t	gtreeid,
		const double *	ref_coords,
		const size_t	num_coords,
		double *	out_coords
	)		const

pure virtual

Maps points in the reference space $ [0,1]^\mathrm{dim} \to \mathbb{R}^3 $.

Parameters

[in]	cmesh	The cmesh in which the point lies.
[in]	gtreeid	The global tree (of the cmesh) in which the reference point is.
[in]	ref_coords	Array of dimension x num_coords many entries, specifying points in $ [0,1]^\mathrm{dim} $.
[in]	num_coords	Amount of points of /f$ \mathrm{dim} /f$ to map.
[out]	out_coords	The mapped coordinates in physical space of ref_coords. The length is num_coords * 3.

Implemented in t8_geometry_lagrange, t8_geometry_zero, t8_geometry_linear_axis_aligned, t8_geometry_linear, t8_geometry_cubed_sphere, t8_geometry_prismed_spherical_shell, t8_geometry_cubed_spherical_shell, t8_geometry_quadrangulated_spherical_surface, t8_geometry_triangulated_spherical_surface, t8_geometry_quadrangulated_disk, t8_geometry_cad, and t8_geometry_analytic.

◆ t8_geom_evaluate_jacobian()

virtual void t8_geometry::t8_geom_evaluate_jacobian	(	t8_cmesh_t	cmesh,
		t8_gloidx_t	gtreeid,
		const double *	ref_coords,
		const size_t	num_coords,
		double *	jacobian
	)		const

pure virtual

Compute the jacobian of the t8_geom_evaluate map at a point in the reference space $ [0,1]^\mathrm{dim} $.

Parameters

[in]	cmesh	The cmesh in which the point lies.
[in]	glreeid	The global tree (of the cmesh) in which the reference point is.
[in]	ref_coords	Array of dimension x num_coords many entries, specifying points in $ [0,1]^\mathrm{dim} $.
[in]	num_coords	Amount of points of /f$ \mathrm{dim} /f$ to map.
[out]	jacobian	The jacobian at ref_coords. Array of size num_coords x dimension x 3. Indices $ 3 \cdot i$ , $ 3 \cdot i+1 $ , $ 3 \cdot i+2 $ correspond to the $ i $-th column of the jacobian (Entry $ 3 \cdot i + j $ is $ \frac{\partial f_j}{\partial x_i} $).

Implemented in t8_geometry_lagrange, t8_geometry_zero, t8_geometry_linear_axis_aligned, t8_geometry_linear, t8_geometry_cubed_sphere, t8_geometry_prismed_spherical_shell, t8_geometry_cubed_spherical_shell, t8_geometry_quadrangulated_spherical_surface, t8_geometry_triangulated_spherical_surface, t8_geometry_quadrangulated_disk, t8_geometry_cad, and t8_geometry_analytic.

◆ t8_geom_get_dimension()

int t8_geometry::t8_geom_get_dimension ( ) const

inline

Get the dimension of this geometry.

Returns: The dimension.

◆ t8_geom_get_name()

const std::string t8_geometry::t8_geom_get_name ( ) const

inline

Get the name of this geometry.

Returns: The name.

◆ t8_geom_get_type()

virtual t8_geometry_type_t t8_geometry::t8_geom_get_type ( ) const

pure virtual

Get the type of this geometry.

Returns: The type.

Implemented in t8_geometry_with_vertices, t8_geometry_zero, t8_geometry_linear_axis_aligned, t8_geometry_linear, t8_geometry_lagrange, t8_geometry_quadrangulated_disk, t8_geometry_cad, and t8_geometry_analytic.

◆ t8_geom_load_tree_data()

virtual void t8_geometry::t8_geom_load_tree_data	(	t8_cmesh_t	cmesh,
		t8_gloidx_t	gtreeid
	)

pure virtual

Update a possible internal data buffer for per tree data.

This function is called before the first coordinates in a new tree are evaluated. You can use it for example to load the vertex coordinates of the tree into an internal buffer (as is done in the linear geometry).

Parameters

[in]	cmesh	The cmesh.
[in]	gtreeid	The global tree.

Implemented in t8_geometry_with_vertices, t8_geometry_zero, t8_geometry_lagrange, t8_geometry_cad, and t8_geometry_analytic.

◆ t8_geom_point_batch_inside_element()

virtual void t8_geometry::t8_geom_point_batch_inside_element	(	t8_forest_t	forest,
		t8_locidx_t	ltreeid,
		const t8_element_t *	element,
		const double *	points,
		const int	num_points,
		int *	is_inside,
		const double	tolerance
	)		const

inlinevirtual

Query whether a batch of points lies inside an element.

Parameters

[in]	forest	The forest.
[in]	ltree_id	The forest local id of the tree in which the element is.
[in]	element	The element.
[in]	points	3-dimensional coordinates of the points to check
[in]	num_points	The number of points to check
[in,out]	is_inside	An array of length num_points, filled with 0/1 on output. True (non-zero) if a point lies within an element, false otherwise. The return value is also true if the point lies on the element boundary. Thus, this function may return true for different leaf elements, if they are neighbors and the point lies on the common boundary.
[in]	tolerance	Tolerance that we allow the point to not exactly match the element. If this value is larger we detect more points. If it is zero we probably do not detect points even if they are inside due to rounding errors.

Reimplemented in t8_geometry_linear_axis_aligned, and t8_geometry_linear.

◆ t8_geom_tree_negative_volume()

virtual bool t8_geometry::t8_geom_tree_negative_volume ( ) const

inlinevirtual

Check if the currently active tree has a negative volume.

Returns: True (non-zero) if the currently loaded tree has a negative volume. 0 otherwise.

Reimplemented in t8_geometry_with_vertices, t8_geometry_zero, t8_geometry_linear_axis_aligned, and t8_geometry_analytic.

The documentation for this struct was generated from the following file:

src/t8_geometry/t8_geometry_base.hxx
