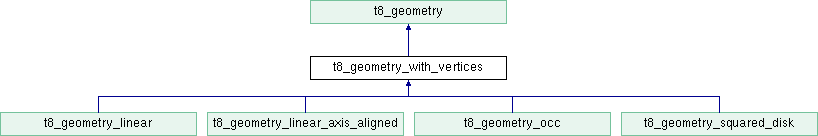

Inheritance diagram for t8_geometry_with_vertices:
Public Member Functions | |
| t8_geometry_with_vertices (int dimension, const char *name, const char *attribute_name=NULL) | |
| virtual | ~t8_geometry_with_vertices () |
| The destructor. More... | |
| virtual void | t8_geom_load_tree_data (t8_cmesh_t cmesh, t8_gloidx_t gtreeid) |
| Update a possible internal data buffer for per tree data. More... | |
 Public Member Functions inherited from t8_geometry | |
| t8_geometry (int dimension, const char *name, const char *attribute_name=NULL) | |
| virtual | ~t8_geometry () |
| The destructor. More... | |
| virtual void | t8_geom_evaluate (t8_cmesh_t cmesh, t8_gloidx_t gtreeid, const double *ref_coords, const size_t num_coords, double *out_coords) const =0 |
| Maps points in the reference space \( [0,1]^\mathrm{dim} \to \mathbb{R}^3 \). More... | |
| virtual void | t8_geom_evaluate_jacobian (t8_cmesh_t cmesh, t8_gloidx_t gtreeid, const double *ref_coords, const size_t num_coords, double *jacobian) const =0 |
| Compute the jacobian of the t8_geom_evaluate map at a point in the reference space \( [0,1]^\mathrm{dim} \). More... | |
| int | t8_geom_get_dimension () const |
| Get the dimension of this geometry. More... | |
| const char * | t8_geom_get_name () const |
| Get the name of this geometry. More... | |
| virtual t8_geometry_type_t | t8_geom_get_type () const =0 |
| Get the type of this geometry. More... | |
Protected Attributes | |
| t8_gloidx_t | active_tree |
| t8_eclass_t | active_tree_class |
| const double * | active_tree_vertices |
| Protected Attributes inherited from t8_geometry | |
| int | dimension |
| The dimension of reference space for which this is a geometry. | |
| const char * | name |
| The name of this geometry. | |
Constructor & Destructor Documentation
◆ ~t8_geometry_with_vertices()
|
inlinevirtual |
The destructor.
It does nothing but has to be defined since we may want to delete geometry that is actually inherited and providing an implementation for the destructor ensures that the destructor of the child class will be executed.
Member Function Documentation
◆ t8_geom_load_tree_data()
|
virtual |
Update a possible internal data buffer for per tree data.
This function is called before the first coordinates in a new tree are evaluated. In this implementation we use it to load the tree's vertex coordinates and class to the internal member variables active_tree_class and active_tree_vertices.
- Parameters
-
[in] cmesh The cmesh. [in] gtreeid The global tree.
Implements t8_geometry.
Reimplemented in t8_geometry_occ.
The documentation for this class was generated from the following files:
- src/t8_geometry/t8_geometry_with_vertices.hxx
- src/t8_geometry/t8_geometry_with_vertices.cxx
